Deploy From Docker Image

The Docker Image deployment flow lets you run prebuilt OCI or Docker-compatible images directly on Hubfly space. Use this path when your CI/CD pipeline builds container images outside Hubfly space, when you publish tagged images to a container registry, or when you want to deploy official open-source infrastructure tools like PostgreSQL, Redis, Nginx, or MinIO.

When To Use Image Deployments

Use Image Deployments when you want Hubfly space to act as the production container host while your CI pipeline (GitHub Actions, GitLab CI, Jenkins, CircleCI) handles code compilation and image creation. If you prefer Hubfly space to build directly from source code, use Deploy From Git instead.

Supported Registries & Sources

Hubfly space can pull public images and external private OCI-compatible images that are reachable over HTTPS:

Registry Type	Example Image Reference	Authentication Requirement
Docker Hub (Public)	`nginx:latest` or `postgres:16-alpine`	None (Anonymous pull)
GitHub Container Registry	`ghcr.io/my-org/backend-api:v2.1.0`	Personal Access Token / GitHub Token (read:packages)
GitLab Container Registry	`registry.gitlab.com/group/project/service:stable`	GitLab Deploy Token or Personal Access Token
Harbor / Private Registry	`registry.mycompany.com/production/app:v1.4.0`	Registry Username & Password/Token
Hubfly space Managed Registry	Hubfly space-generated image tag from CLI deploy	Managed automatically by project credentials

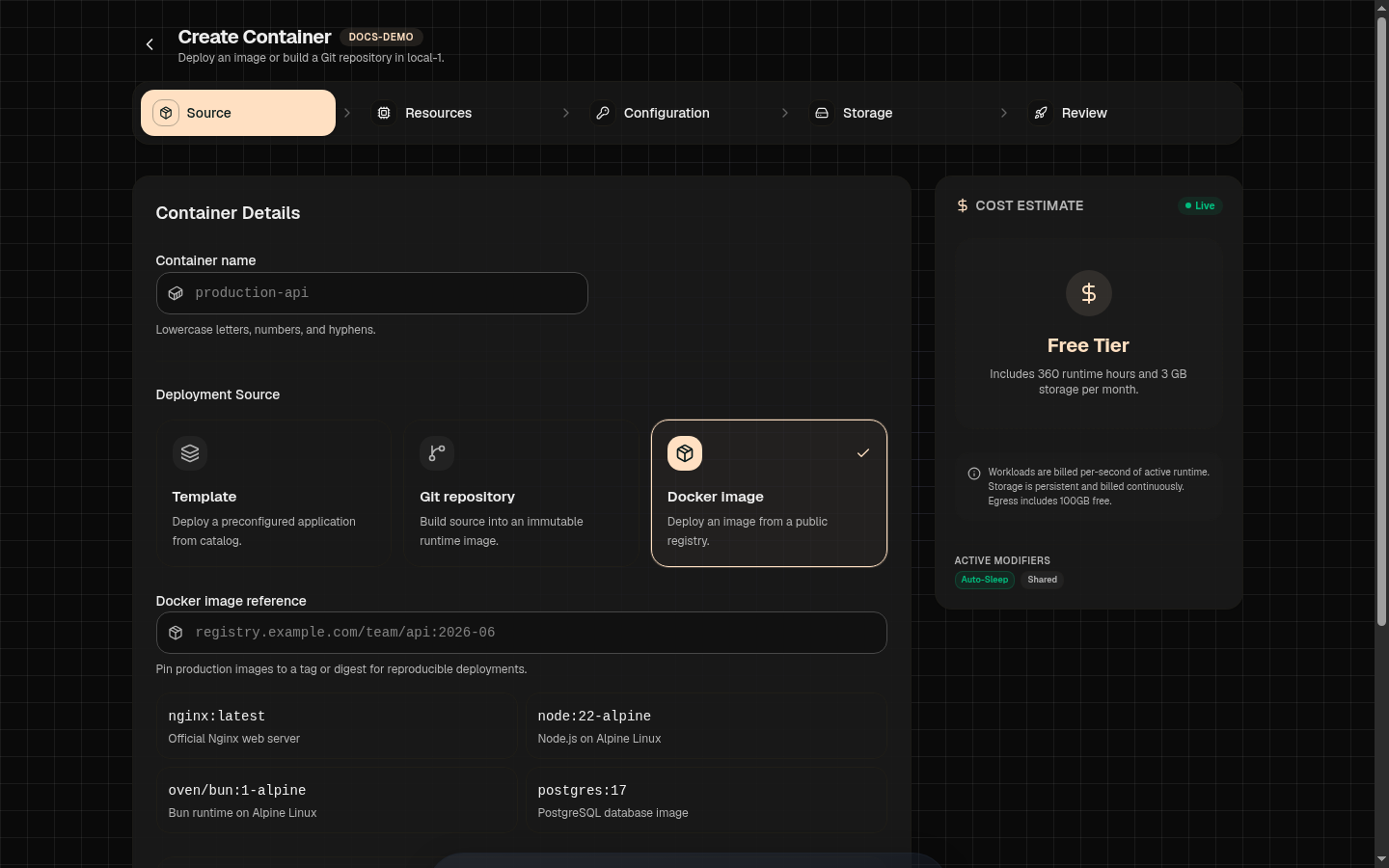

The Create Container wizard with Docker Image selected as the deployment source, showing the image reference input field — Paste a full image reference — public images pull immediately, private ones prompt for registry credentials.

Image Reference Syntax & Tagging

An image reference specifies the registry host, organization, image repository, and tag.

// Standard Image Reference Format

[registry_host]/[namespace]/[repository]:[tag]

Production Tagging Best Practices

Avoid Floating Tags: Avoid using :latest or :main in production. Floating tags make rollbacks unpredictable because the underlying image layer can change without updating the container reference.
Use Immutable Version Tags: Tag production images with semantic versions or git commit SHAs (e.g. :v1.4.2 or :sha-7f3b1a9).
Digest Pulls: For maximum immutability, pull by SHA256 digest: ghcr.io/acme/api@sha256:e3b0c44298fc...

Step-by-Step Image Deployment

1Open Container Setup

Open your project in the Hubfly space dashboard, click New Container, and select the Docker Image tab.

2Enter Image Reference

Paste your full image reference into the input field (e.g. redis:7-alpine or ghcr.io/acme/worker:v2.0.1).

3Configure Private Registry Access (If Required)

If the image is hosted in a private repository, toggle Private Registry Credentials:

Public image: No credential is needed when the registry permits anonymous pulls.
Saved Registry Credential: Stores the external registry URL and pull credential encrypted in the project for future redeployments. See the registry reference for the exact fields.

4Runtime & Command Overrides

Optionally override the image's default ENTRYPOINT or CMD instructions, set environment variables, select CPU/RAM sizing, attach persistent volumes, and click Deploy.

Entrypoint & Command Overrides

By default, Hubfly space executes the entrypoint and command baked into the Dockerfile image header. You can override these instructions to run secondary background processes, queue workers, or custom startup scripts.

Argument Formatting Rules

In the Hubfly space UI, entrypoints and commands are passed as string arrays. Enter one argument per line without quoting or comma separation.

Example A: Custom Worker Command

Overrides the container default command to run a Celery queue worker, one argument per line:

command (array)

celery

-A

app.tasks

worker

--loglevel=info

Example B: Shell Entrypoint Exec

Overrides the entrypoint to execute a shell script before launch:

entrypoint (array)

/bin/sh

-c

./migrate.sh && exec node server.js

Stateful Images & Volume Attachments

When deploying database images or media servers, runtime files written to unmounted container directories will be lost if the container restarts or updates. Attach a Managed Volume to ensure data persistence.

Workload Image	Container Target Mount Path	Recommended Storage Mode
`postgres:16`	`/var/lib/postgresql/data`	High Performance (Low IOPS latency)
`redis:7`	`/data`	High Performance or Standard
`minio/minio`	`/data`	Balanced (Large file throughput)
`nginx:latest`	`/usr/share/nginx/html`	Standard

Redeploy after publishing a new image

A successful push to GHCR, Docker Hub, or your private registry does not replace a running Hubfly space container automatically. Configure a deployment pipeline webhook for the container, then call its generated endpoint from CI with{"action":"pull"}. The webhook guide covers URL-token and Secure HMAC modes, GitHub Actions signing, allowed actions, and deployment troubleshooting.

Keep the image reference deterministic

Use an immutable version tag or digest in the webhook workflow, such asghcr.io/acme/backend:sha-7f3b1a9 or an @sha256:... reference. A moving tag can make it difficult to identify which image a deployment pulled.

Troubleshooting Image Deployments

Symptom	Likely Cause	Resolution
`manifest for repo not found`	Image tag does not exist or image name is misspelled.	Verify image name and tag in registry.
`unauthorized: authentication required`	Private image pulled without valid credentials.	Add a Saved Registry Credential with package read permissions.
`exec format error`	Architecture mismatch (e.g. ARM64 image on x86 node).	Build multi-architecture images or target `linux/amd64` in CI.
`Endpoint 502 / Connection Refused`	App listening on `127.0.0.1` instead of `0.0.0.0`.	Ensure app binds to all interfaces (`0.0.0.0`) and matches container port.
Redeploy still uses the old image	The container was not redeployed after a tag was replaced, or a floating tag was cached.	Call the deployment webhook after publishing, prefer a new immutable tag, and confirm the resulting image digest in the Dashboard.
