Architecture & Operating Model

Hubfly space is built around a simple engineering belief: developers should be able to ship real production containers, multi-service stacks, databases, background workers, and GPU workloads without turning every deployment into a custom infrastructure engineering project.

The Hubfly space Philosophy

The best Hubfly space workflow is not "click deploy and hope." The best workflow is: understand the service, choose the right deployment shape, keep private dependencies private, expose only deliberate entry points, attach persistent storage intentionally, and grow from a simple deploy into a production system step by step.

The Hubfly space 5-Question Framework

When designing any deployment on Hubfly space, evaluate your architecture using these five operational decisions:

Decision Area	Key Questions & Considerations	Hubfly space Tooling
1. Workload Source	What am I running? Git repository, prebuilt Docker image, template, Compose stack, or GPU instance?	Git Builder, Image Registry, Compose Engine
2. State & Persistence	What data outlives container replacement? PostgreSQL data, user uploads, media, model weights?	HubBlock Managed Volumes (Standard, Balanced, High Performance)
3. Public Access	What needs inbound internet traffic? Web app, REST API, webhook endpoint, TCP stream, or custom domain?	Public HTTP/TCP Endpoints, Custom Domains, SSL/TLS, Load Balancers
4. Private Isolation	What should stay hidden from the public internet? Databases, Redis caches, workers, admin interfaces?	Private Project Network (`.hubfly.internal`), HubTunnels
5. Growth & Operations	How will capacity grow? Vertical CPU/RAM auto-scaling, manual replicas, edge firewall, CI/CD pipelines?	Vertical Auto-Scale, Scale Replicas, Firewall WAF, CLI Automation

The Platform Layer Model

Hubfly space separates cloud architecture into eight explicit operational layers:

1. Source Layer

Git repos, Docker registry tags, Compose YAML, CLI uploads, GPU templates.

2. Build Layer

Hubfly space Builder stack detection, multi-stage Dockerfiles, build-env scoping.

3. Runtime Layer

Hubcell container engine, shared vs dedicated tiers, vertical auto-scale, health checks.

4. Storage Layer

Managed persistent volumes, HubBlock driver, performance modes, web file browser.

5. Private Network

Project-scoped internal overlay, regional DNS aliases (.hubfly.internal).

6. Edge & Ingress

HTTP/TCP proxies, automated SSL certificates, custom domain transfers, load balancers.

7. Access Layer

HubTunnels for authenticated local SSH port forwarding to private containers.

8. Edge Security

Hubfly space Firewall, rate limiting, IP CIDR policies, restricted paths, bot protection.

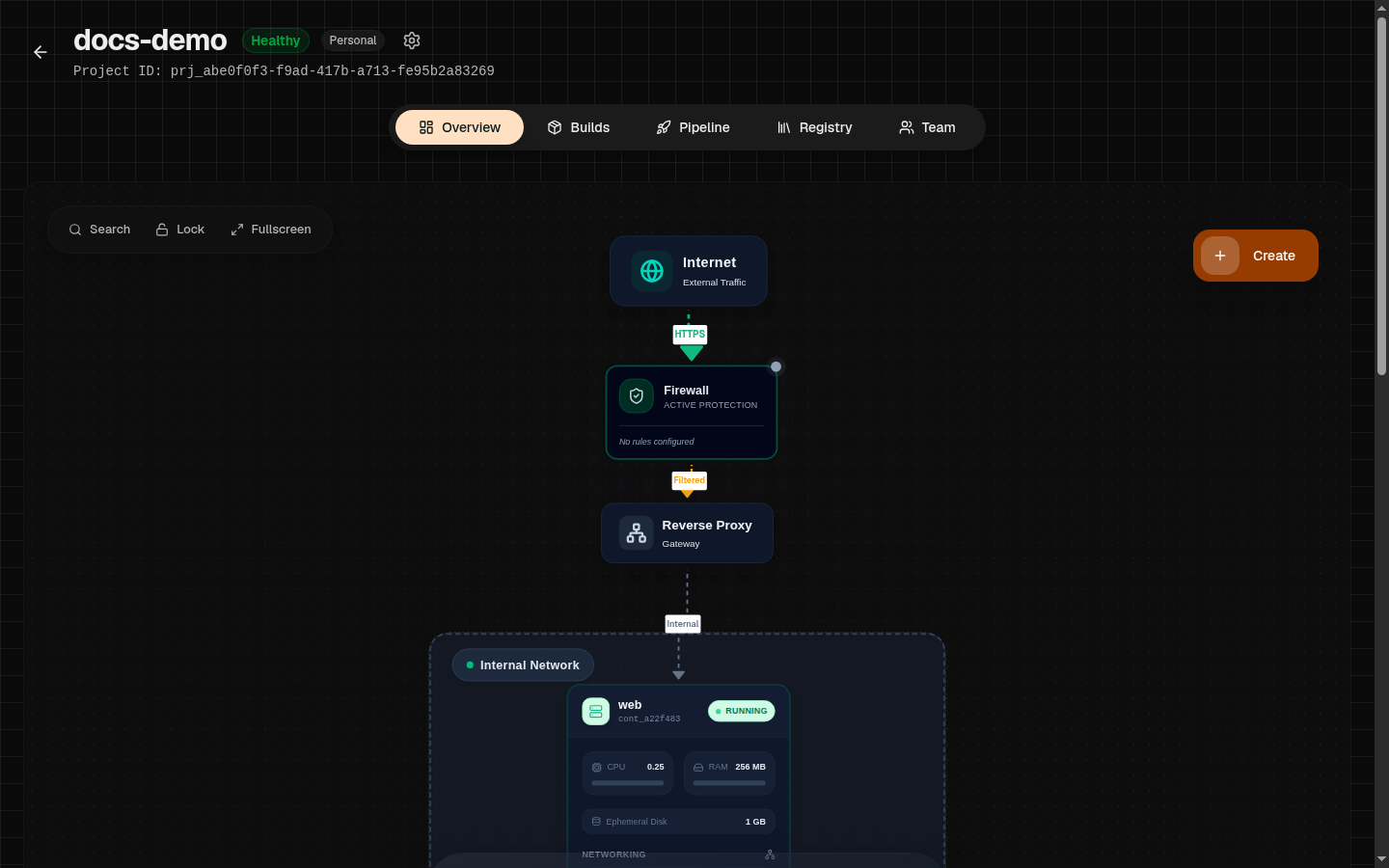

A live traffic-flow diagram showing layers 5 through 8 of the platform model in one running project — Layers 5–8 of the model, rendered live from a real project: private network, edge ingress, and firewall in one traffic-flow diagram.

Hubcell Runtime Foundation

Hubfly space runs containers on an internal runtime platform called Hubcell.

Hubcell manages the container execution lifecycle: allocating cgroup resources, wiring network namespaces, attaching persistent storage blocks, streaming live logs, executing shell sessions, and ensuring multi-tenant isolation across regional worker nodes.

No Host Lock-in

You don't need to learn Hubcell APIs directly. The user-facing model remains standard containers, Docker Compose definitions, volumes, and ports. Hubcell simply ensures your container behavior remains consistent regardless of the underlying cloud hardware.

Private-First Networking Culture

Production security starts by keeping internal dependencies private by default.

Internal Traffic: Application-to-database, API-to-Redis, and worker-to-queue connections run across the private project network over internal DNS aliases (e.g. postgres-db.eu1.hubfly.internal).
Public Traffic: Only entrypoint web applications and APIs receive public HTTP endpoints or custom domains.
Operator Access: Developers and administrators access private databases or admin panels using short-lived HubTunnels rather than opening public database ports to the internet.
